SEAMLESS EVOLUTION
OF YOUR MICROSCOPY

Structured Illumination Microscopy that answers the deep biological questions effortlessly.
For any laboratory, across a wide scale of specimen types.

Full
compatibility
Down to 100 nm
Deep
imaging
Lattice
SIM
At CrestOptics, we believe that super-resolution should be accessible for all scientists to progress their research.
This is the reason behind the development of the DeepSIM, the first Lattice SIM super-resolution module that is compatible with any existing upright or inverted microscope with a  camera port.
The DeepSIM constitutes the seamless evolution of any diffraction-limited microscopy approach.
It is as easy to use as a widefield system and reaches the same Z-depth penetration of a confocal microscope, enabling scientists to access super-resolved data through conventionally prepared, deep, thick specimens, even in challenging sampling conditions.

Did you miss the DeepSIM launch event?

Do you want to see the DeepSIM in action?

Learn More

Add Your Heading Text Here

Imaging Across Scale: Multiple Lattice SIM Illumination Patterns

The 2D Lattice SIM technology behind DeepSIM enhances the illumination efficiency and homogeneity with minimal phototoxicity in live cell imaging experiments. Besides, the 2D Lattice SIM Illumination delivers a better contrast that significantly improves in-depth Z-acquisitions and the image reconstruction robustness

More importantly, the user can choose among 3 Lattice SIM Illumination Patterns for approaching specimens of increasing thickness and morphological complexity. The well-matched sampling conditions significantly mitigate the risk of artifacts in image reconstruction.

High throughput

  • Live imaging
  • Cell monolayers
  • Thin samples (up to 50 µm)
  • Dotted or filiformed structure

Standard

  • 3D cell culture
  • Uncleared tissue
  • Thick samples up to 100 µm
  • Intricate structures (e.g. glomeruli)

Deep Imaging

  • Small organisms (C. elegans, Zebrafish)
  • Cleared tissue
  • Deep imaging over 100 µm
  • Dense and homogeneous structures

Description

Down to 100 nm
lateral resolution

Featuring the structured lattice illumination with the computationally super-resolved data reconstruction, DeepSIM improves the spatial resolution in all three dimensions reaching 100 nm laterally and 300 nm axially.

HeLa cells with Oregon Green™ 488 stained tubulin. Two progressive zooms of the area of interest (dotted box) are shown in the upper right boxes. The intensity profile obtained on the tubulin filament under the red arrow is depicted in the graph. 100x Oil, NA 1.45.

Deep imaging through thick specimens

Deep super-resolved data across conventionally prepared thick samples. The DeepSIM is designed to work with samples of thicknesses comparable to those used with Confocal microscopy, giving super-resolved data over 50 μm Z-depth. Z-stacks take full advantage of the entire objective working distance and meaningful data can be obtained from a native heterogeneous and intricate sample, providing researchers with a complete understanding of its structure and composition.

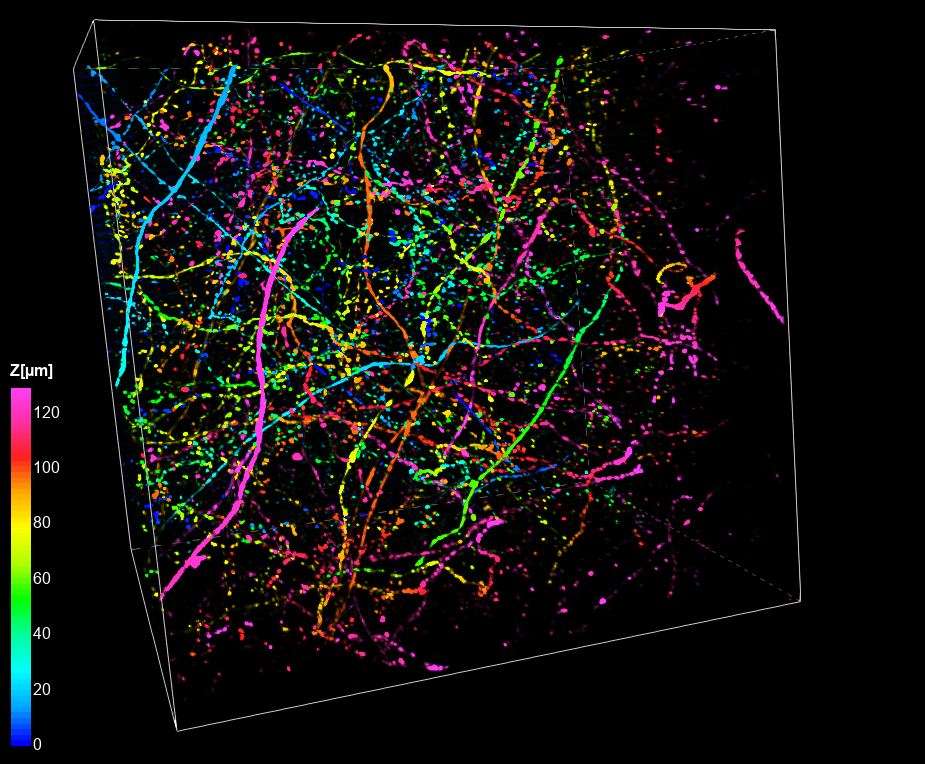

Cleared mouse brain with GFP-neurons is shown in 3D view depth-code (130 µm). 60x Oil, NA 1.4.

Click here to see the 3D-movie.

Suitable with standard confocal staining up to Near-Infrared 750 nm Excitation

Multiplexed imaging is an emerging way to gather information from multiple cellular markers simultaneously. DeepSIM performs optimally with the standard staining markers for confocal microscopy. It is the only SIM technology covering the full spectrum from 405 nm to NIR 750 nm excitation wavelength. DeepSIM offers the maximum flexibility in fluorophore choice and reduces the spectral overlap in multicolor experiments.

3D movie of a mouse brain tissue section showing neurons with dendritic spines (yellow), glial cells (magenta), astrocytes (white) and DNA (cyan). 60x oil 1.4 NA. Sample credits: Prof. Di Angelantonio, CLN2S@Sapienza Università di Roma – IIT.

Compatible with Low Mag objectives and with any kind of Immersion Media

The DeepSIM was conceived to maintain high standards of performance over a large set of objectives from Low Magnification 20x up to High Magnification 100x. The compatibility with dry lenses and any immersion media expands the range of suitable applications over a large cohort of sample and support types. DeepSIM offers the best trade-off between FOV and resolution to catch fine details in extra-large objects.

(i) Mouse retina section stained with nuclei (blue), Vimentin (green), CD39 (orange), nuclear marker (red). A Maximum Intensity Projection (MIP) of 100 µm Z-stack is shown. 25x Silicone, NA 1.05. Sample credits: Dr. Lagerholm, Dr. Yegutkin, Dr. Svärd (University of Turku&InFLAMES Research Flagship, Finland), and Dr. Imreh (Karolinska Institutet, Sweden).

Click here to see the 3D-movie.

(ii) DeepSIM acquisition of the Zebrafish eye region with Cy7 neuronal marker. A MIP of 70 um Z-stack is shown. 20x Dry, NA 0.8. Sample credits: Dr. Paradisi, Dr. Tartaglia, Dr. Lauri, Ospedale Pediatrico Bambino Gesù, Rome, Italy.

Click here to see the 3D-movie.

Resilient resolving power across specimen scale: from 3D organoids to small animal models

The DeepSIM resolving power is preserved across a wide spatial scale, including 3D organoids, tissue slices, and small animal models (Zebrafish, C. elegans). The extended flexibility suggests its use with Spinning Disk technology in a correlative bioimaging approach.

(i) Dissociated neurons co-cultured with cancer organoids: a MIP of a 13 μm Z-stack is shown. Staining: nuclei with DAPI (blue), EpCAM for cancer cells (green), b3 Tubulin (red), SV2A (synaptic density marker, orange), and Synaptophysin (neuroendocrine presynaptic marker, white). 60x Oil, NA 1.42. Sample credits: Prof. Hwang, Dr. Wang, Harvard University, MA, USA

(ii) Caenorhabditis elegans embryo stained with DAPI (blue) and Alexa568 showing protein condensates formed by the transcription factor HSF-1(orange). A MIP of a DeepSIM acquisition is shown. 100x Oil, NA 1.45. Sample credits: Prof. Klosin, Nencki Institute of Experimental Biology PAS, Warsaw, Poland

(iii) A MIP of a 40  μm  Z-stack of a whole mouse brain slice with GFAP-positive astrocytes. 60x Oil, NA 1.42. Sample credits: Dr. Brunne and Dr. Failla, Universitätsklinikum Hamburg Eppendorf UKE – Microscopy Imaging Facility, Germany.

Click here to see the 3D-movie.

Gentle Lattice Structured illumination suitable for live-cell imaging

Thanks to its temporal resolution of over 10 fps, the DeepSIM allows the capture of meaningful data at high resolution with minimized light exposure and photo-toxicity risk. Delicate and live specimens can be explored in real time to monitor cellular and subcellular changes.

HeLa cells expressing actin (green) and endosomal (cyan) markers. 30-sec time lapse. 60x water 1.27 NA. Sample credits: Dr. Fujioka, Hokkaido University, Japan

Evolution through compatibility

DeepSIM is designed to be a truly enabling technology where performance is combined with the flexibility of a modular, expandable system. DeepSIM can seamlessly upgrade any existing frame with a camera port, be it upright or inverted, thus leading to a significant cost-saving setup.

DeepSim

DeepSIM stand-alone

for upright/inverted microscope

DeepSim X-Light V3 CrestOptics

DeepSIM X-Light

combined with X-Light V3

Technical features

DeepSIM stand-alone DeepSIM X-Light
FOV 1024x1024pixel (66×66 µm 100X | 333×333µm 20X) 1024x1024pixel (66×66 µm 100X | 333×333µm 20X)
Resolution Lateral Resolution (FWHM): ~100 nm (100X NA 1.45) Axial Resolution (FWHM): ~300 nm (100X NA 1.45) Lateral Resolution (FWHM): ~100 nm (100X NA 1.45) Axial Resolution (FWHM): ~300 nm (100X NA 1.45)
DeepSIM Acquisition speed 13fps (1024x1024px) 13fps (1024x1024px)
Laser spectral range Excitation: 400-750 nm; emission: 400-850 nm Excitation: 400-750 nm; emission: 400-850 nm
Objective specifications -from 20X to 100X magnification range
-high numerical aperture (NA)
-plan apochromat correction
-from 20X to 100X magnification range
-high numerical aperture (NA)
-plan apochromat correction
Camera compatibility Any triggerable camera having 6.5 µm pixel size Any triggerable camera having 6.5 µm pixel size
Spinning disk upgrade Stand-alone solution Add-on compatible with CrestOptics X-Light V3
Imaging modalities Super-resolution DeepSIM | Widefield Super-resolution DeepSIM | Confocal spinning disk X-light V3 | Widefield
Upgradable microscope configuration Upright and inverted configurations Inverted configuration
Software µManager /VisiView® / NIS Elements µManager /VisiView® / NIS Elements
Installation Conditions Temperature 23 ± 5°C, Humidity 70% RH or less Temperature 23 ± 5°C, Humidity 70% RH or less
Weight 50.7 lbs | 23Kg 44 lbs | 20Kg
Dimensions 13.8 (w) x 20.2 (L) x 11.4 (h) inches 352.0 (w) 514.0 (L) x 290.5 (h) mm 14.0 (w) x 17.1 (L) x 11.4 (h) inches 356.0 (w)  435.0 (L) x 290.5 (h) mm

The product packaging has been certified by the International Safe Transit Association (ISTA).

Compatibility

List of compatible products

Detectors

Teledyne Photometrics
Hamamatsu
Andor technology
PCO

Microscopes

Nikon
Evident (former Olympus)
Leica
Zeiss

Illuminators

89North – LDI

Lumencor – CELESTA light engine

Software

NIS-Elements
MicroManager
VisiView
